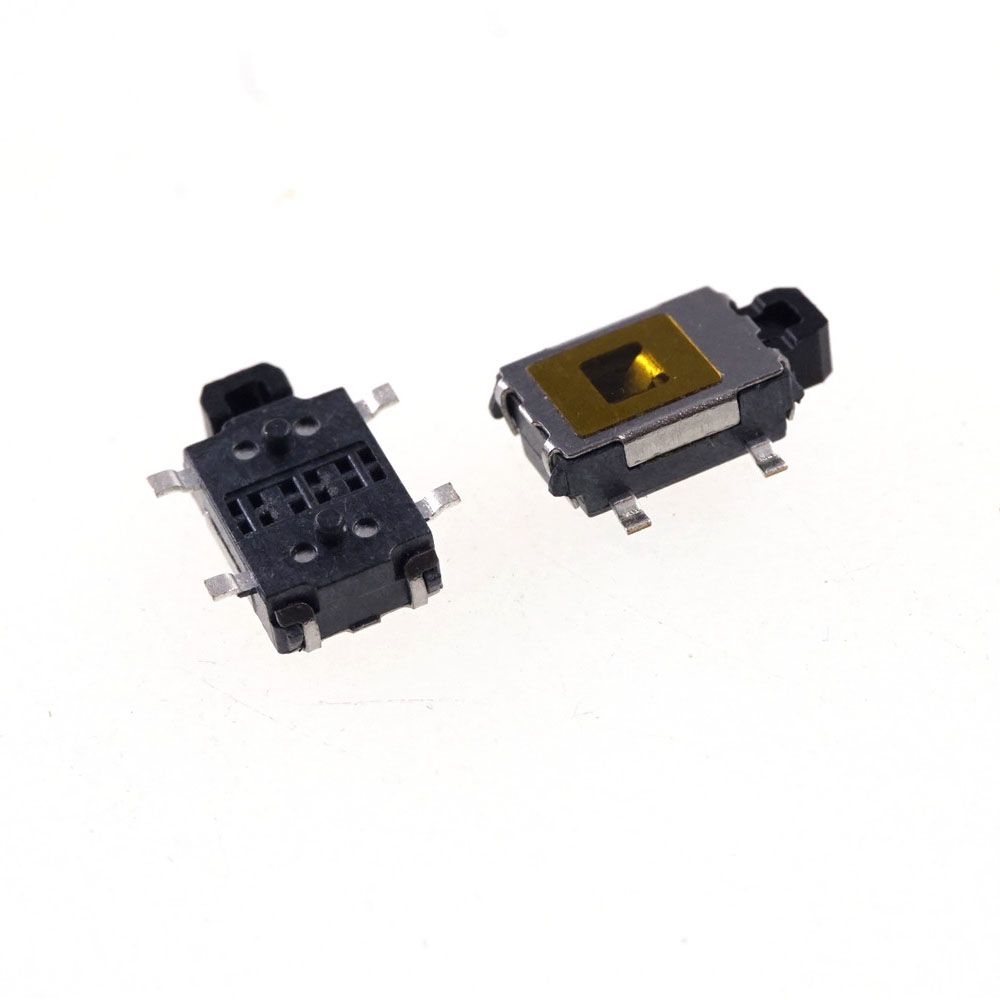

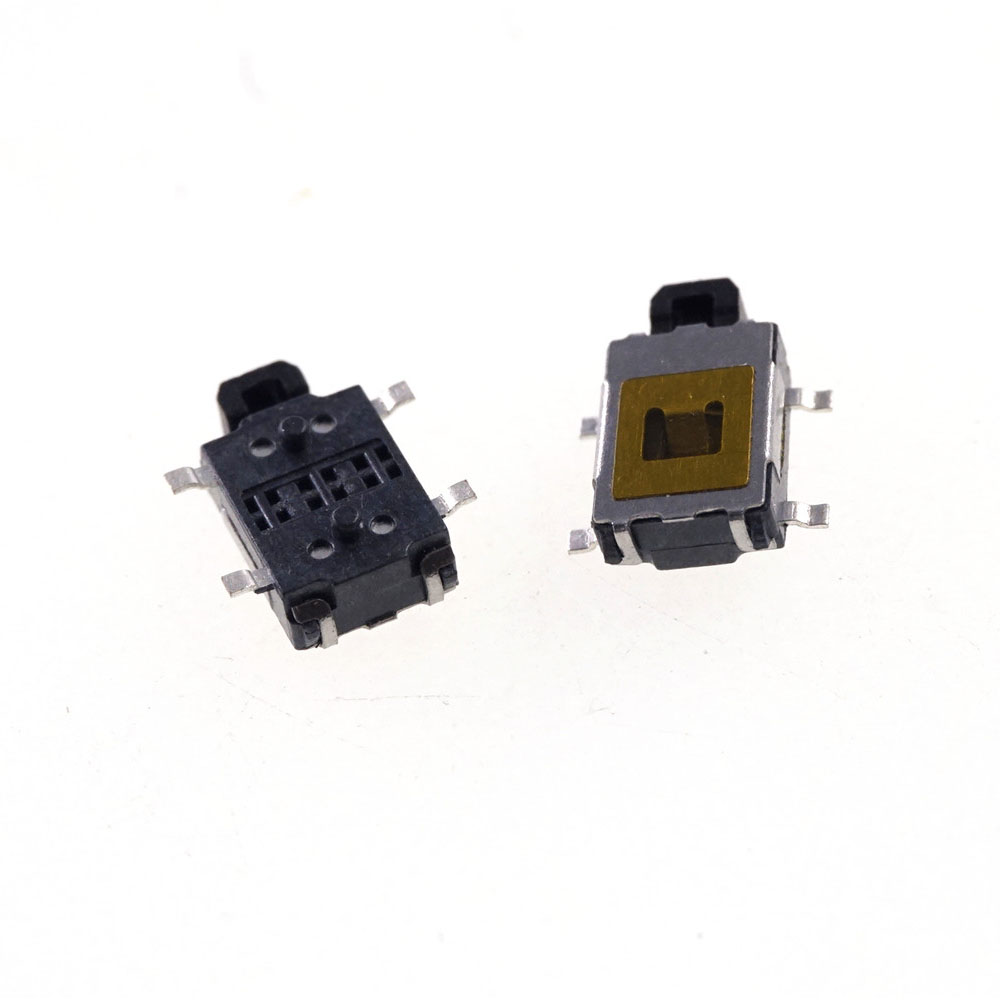

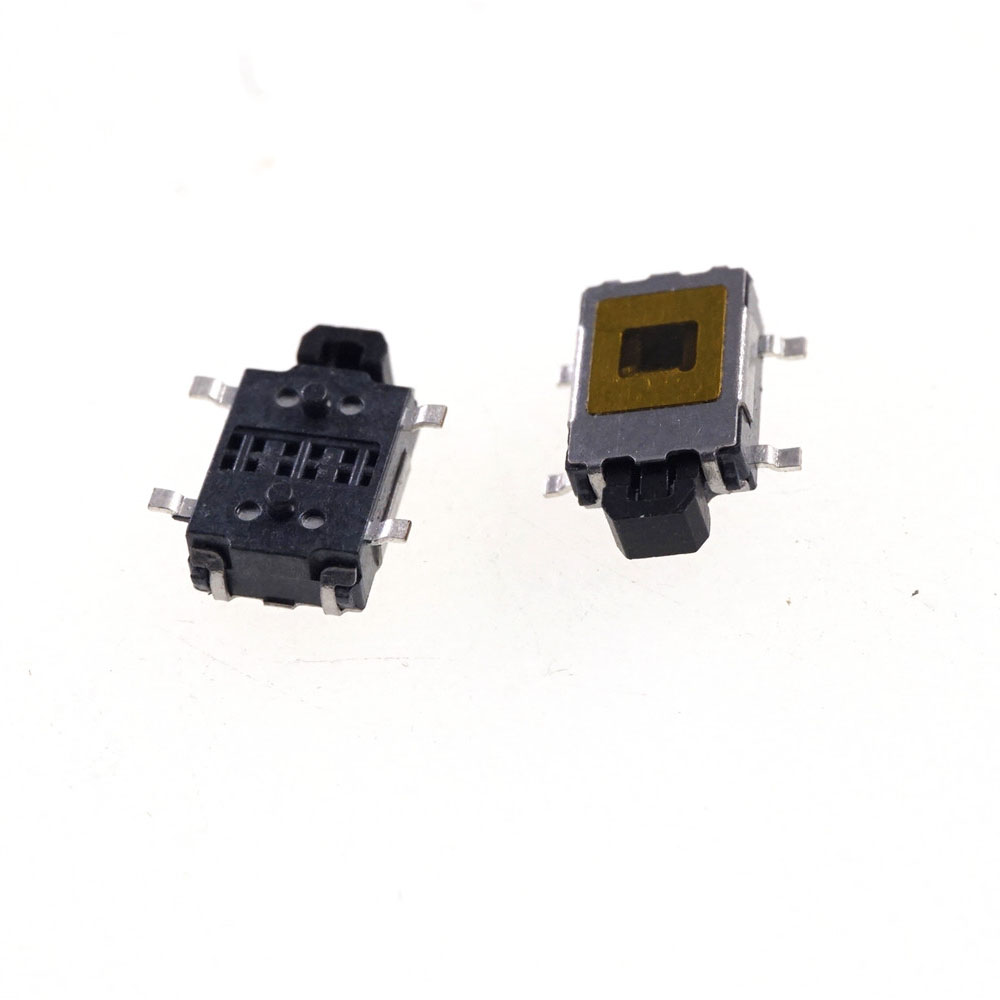

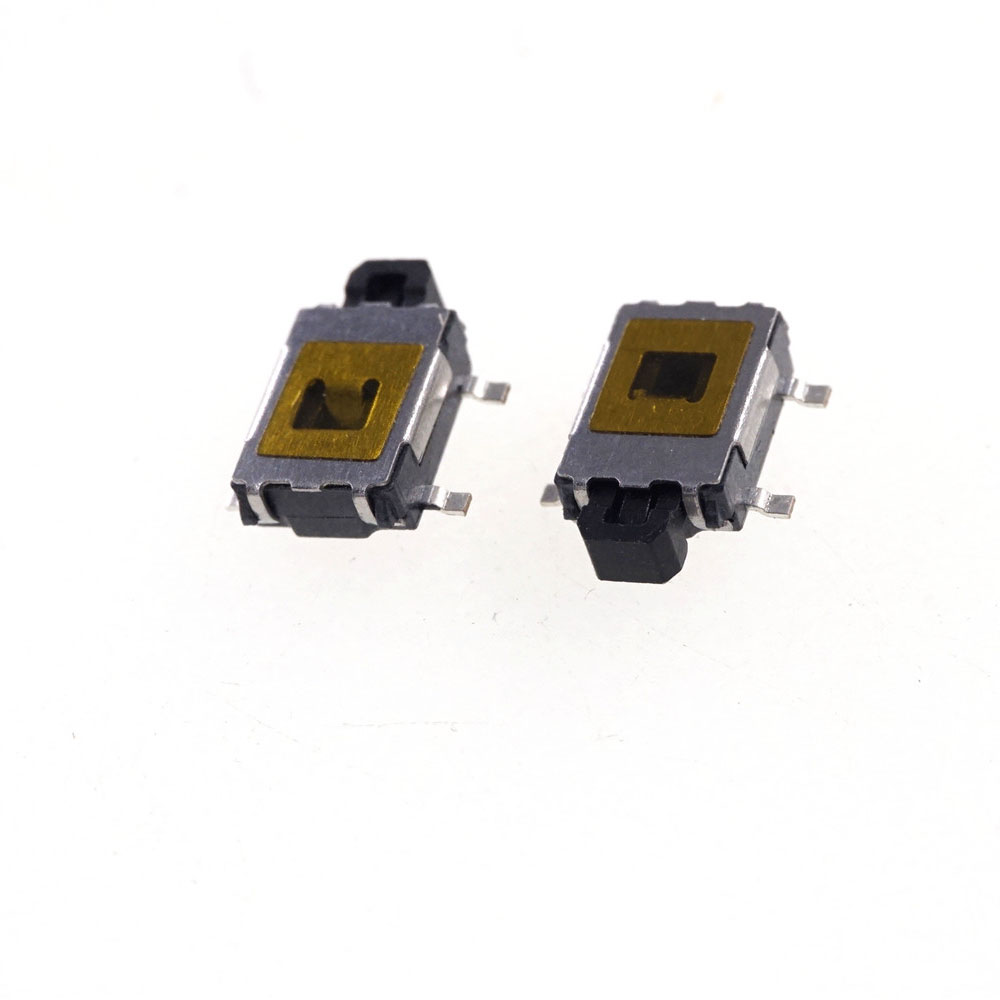

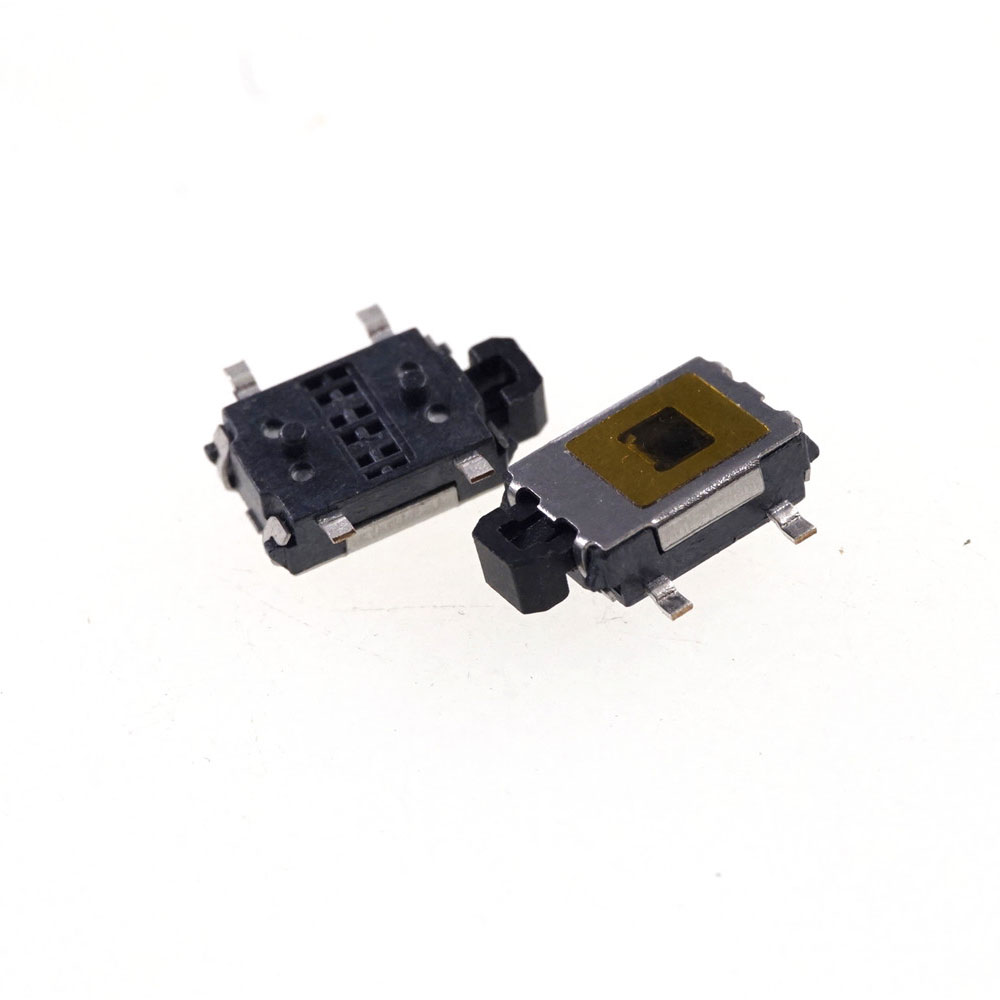

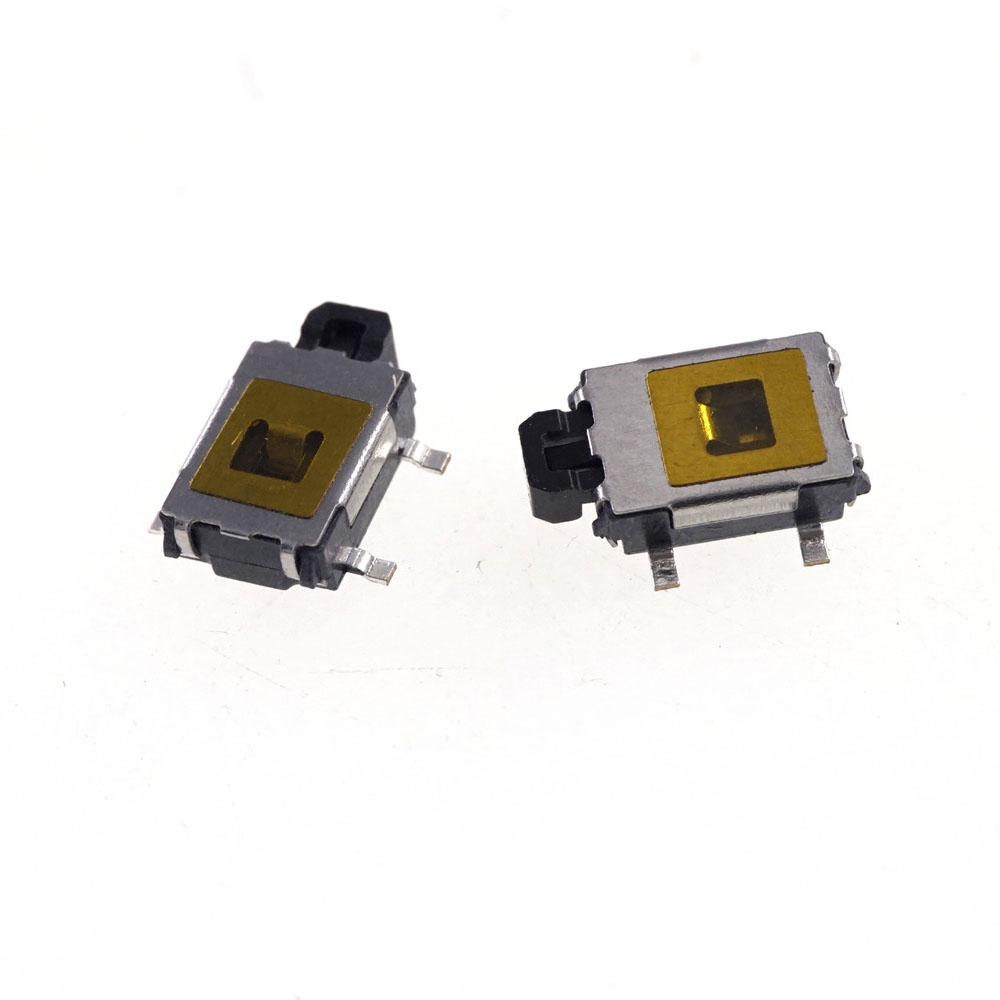

Tact Switch

6.1 mm x 4.0 mm Height 1.8 mm

Light Touch Switch

Horizontal SMD

Snap Action

Push-On SPST Side

Cross Part EVQPSM02K

Straight Terminals with Boss

Board Guide

Lifetime: 100,000 cycles

50mA 12 Vdc Rated

500 mOHm Max Contact Resistance

Operating Force 160 GF 180GF 250GF available
