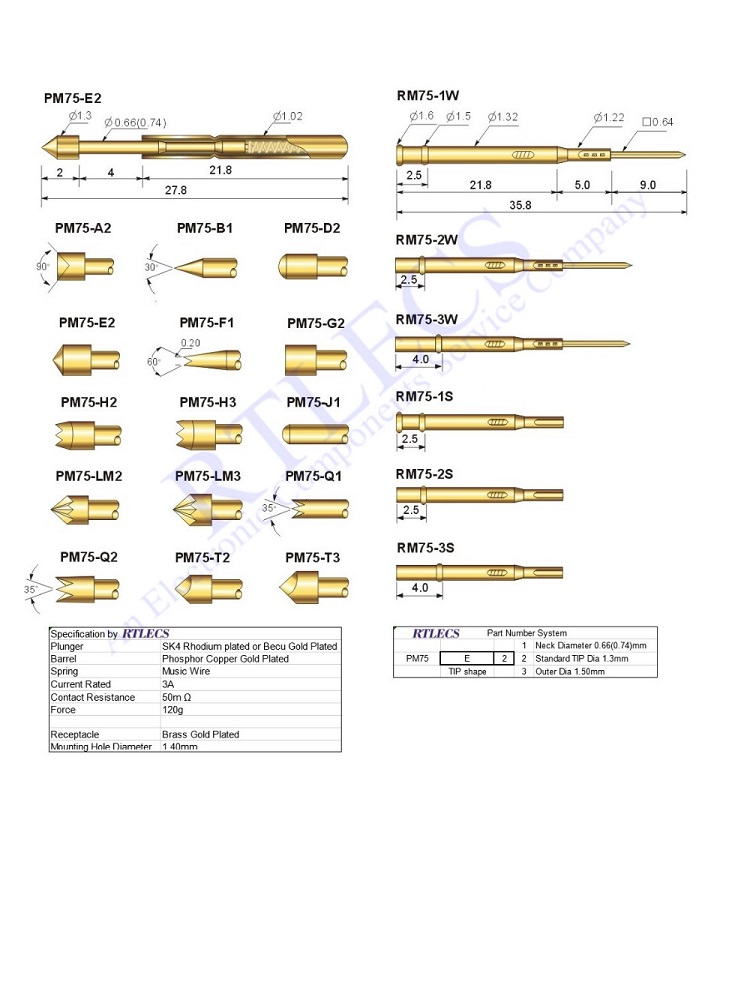

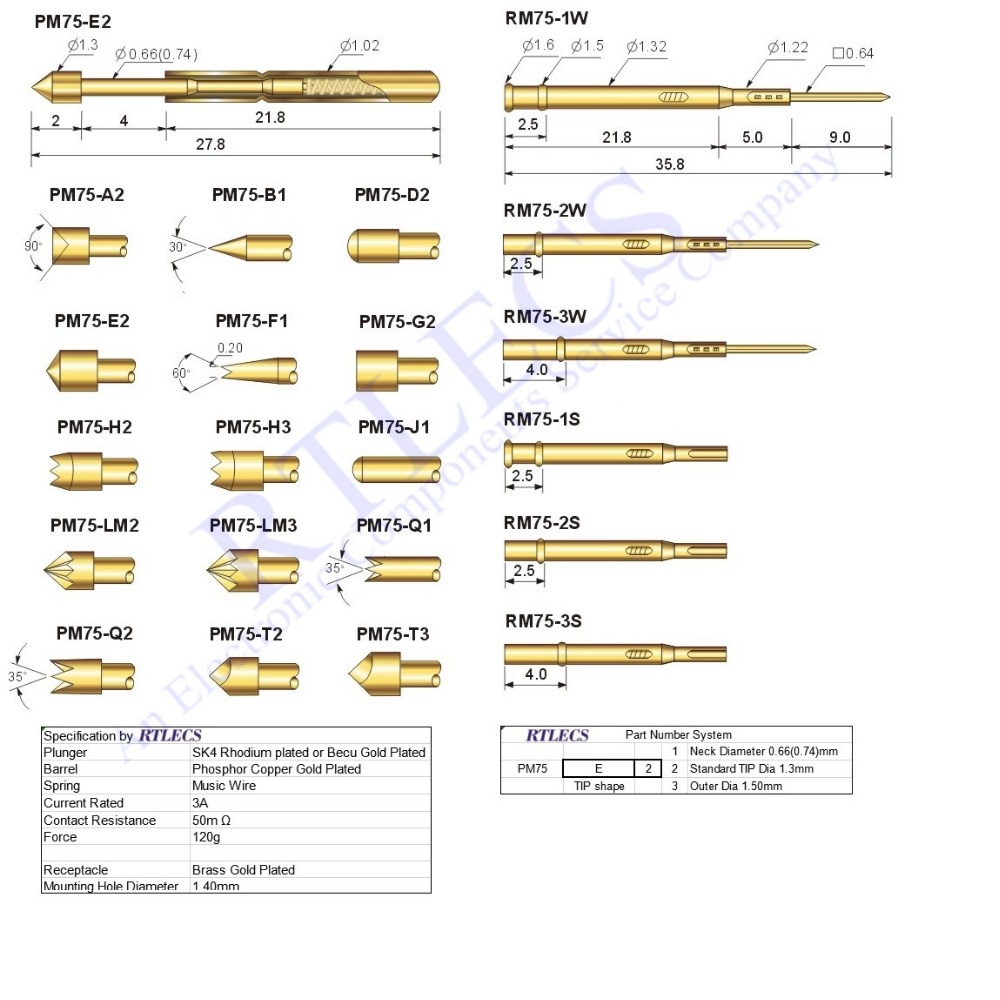

Bare PCB 1.91mm Pitch Spring Test Probe PM75 Testing Pin 27.8mm Length 1.02mm Dia Gold plated TIP styles Sockets to order
Bare PCB 1.91mm Pitch Spring Test Probe PM75 Testing Pin 27.8mm Length 1.02mm Dia Gold plated TIP styles Sockets to order

1.91 mm Pitch Min to Test

Spring Test Probe PM75

Receptacle Series RM75

Bare PCB Pitch 1.91mm Minimum Distance Testing Sping Pin

Gold Plated

Probe Length 27.8 mm

3A

120gf for test probe

Diameter 1.02mm Barrel

Different Tip Styles choose to order

Probe/ Receptacle is ordered Separately


Inquiry Now Download
Bare PCB 1.91mm Pitch Spring Test Probe PM75 Testing Pin 27.8mm Length 1.02mm Dia Gold plated TIP styles Sockets to order
Bare PCB 1.91mm Pitch Spring Test Probe PM75 Testing Pin 27.8mm Length 1.02mm Dia Gold plated TIP styles Sockets to order
