8 Pin Magnetic Pogo Pin Connector Dual Row 2.54mm Pitch
8 Pin Magnetic Pogo Pin Connector Dual Row 2.54mm Pitch
Dual Row Magnetic Pogo Pin Connector 8 Pin

Pitch 2.54mm

2x4 Positions

Dual Row

DIP Solder type

Current rated 2A

Right Angle/Straight / Wire solder type


Part Number:

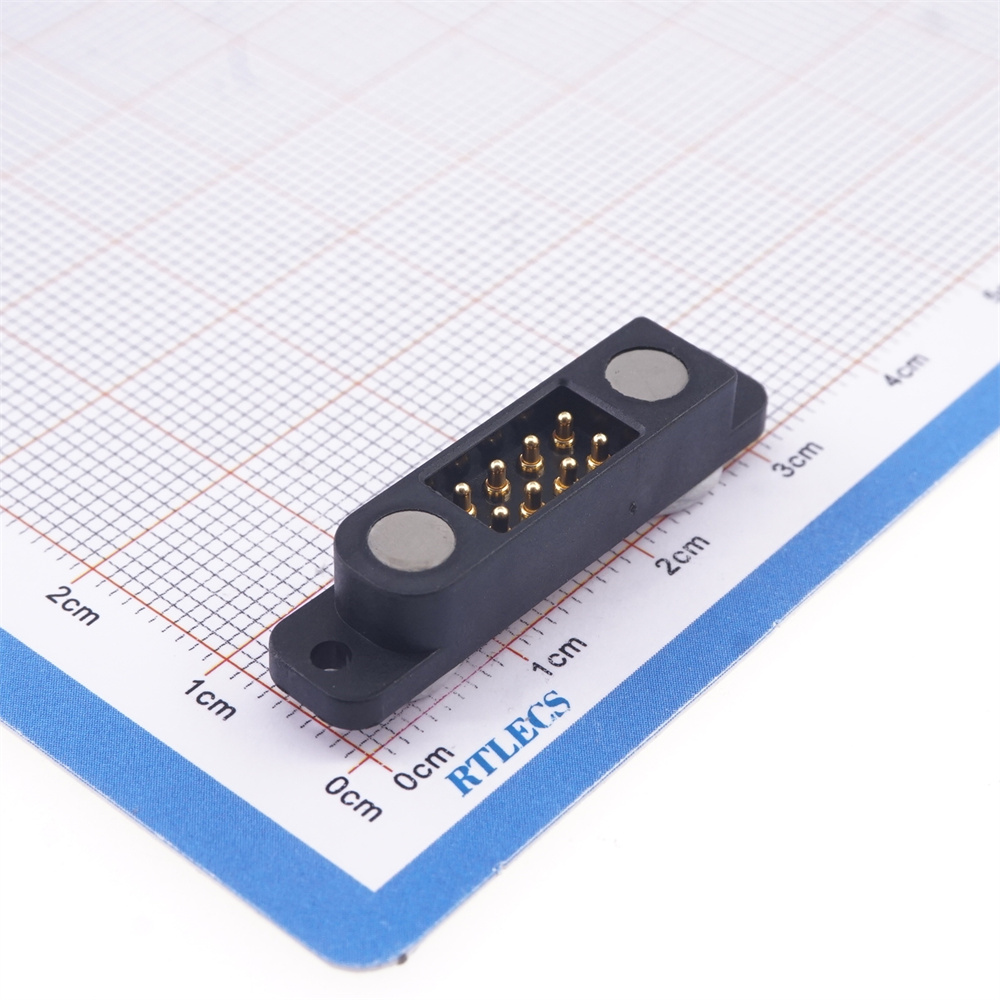

Male Straight MG2425M

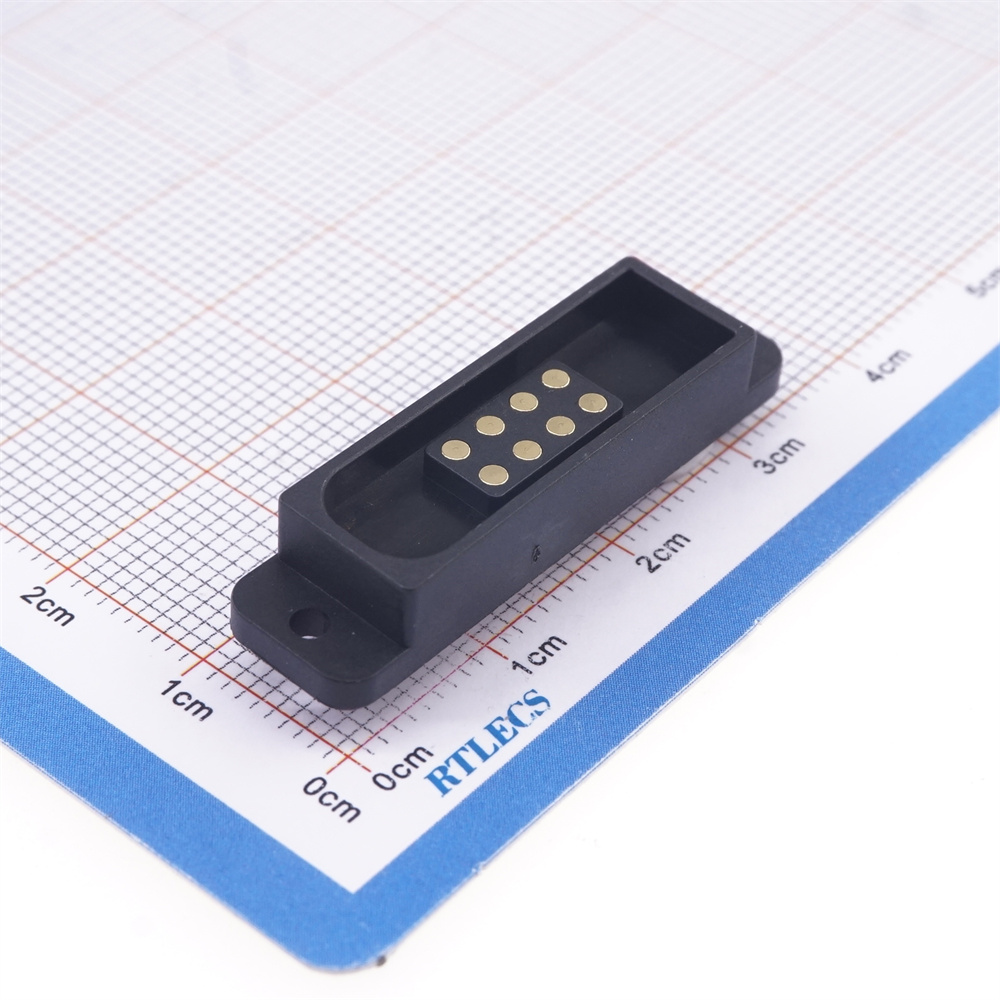

Female Straight MG2425F

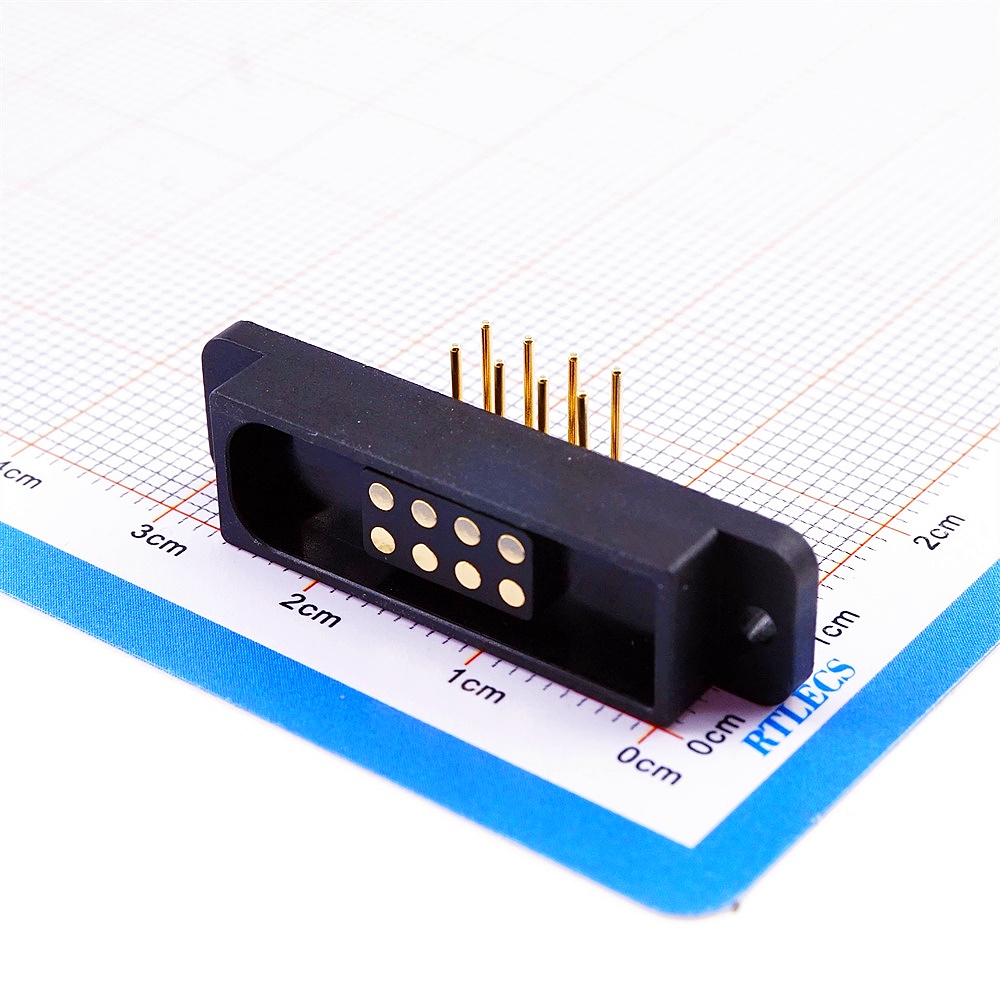

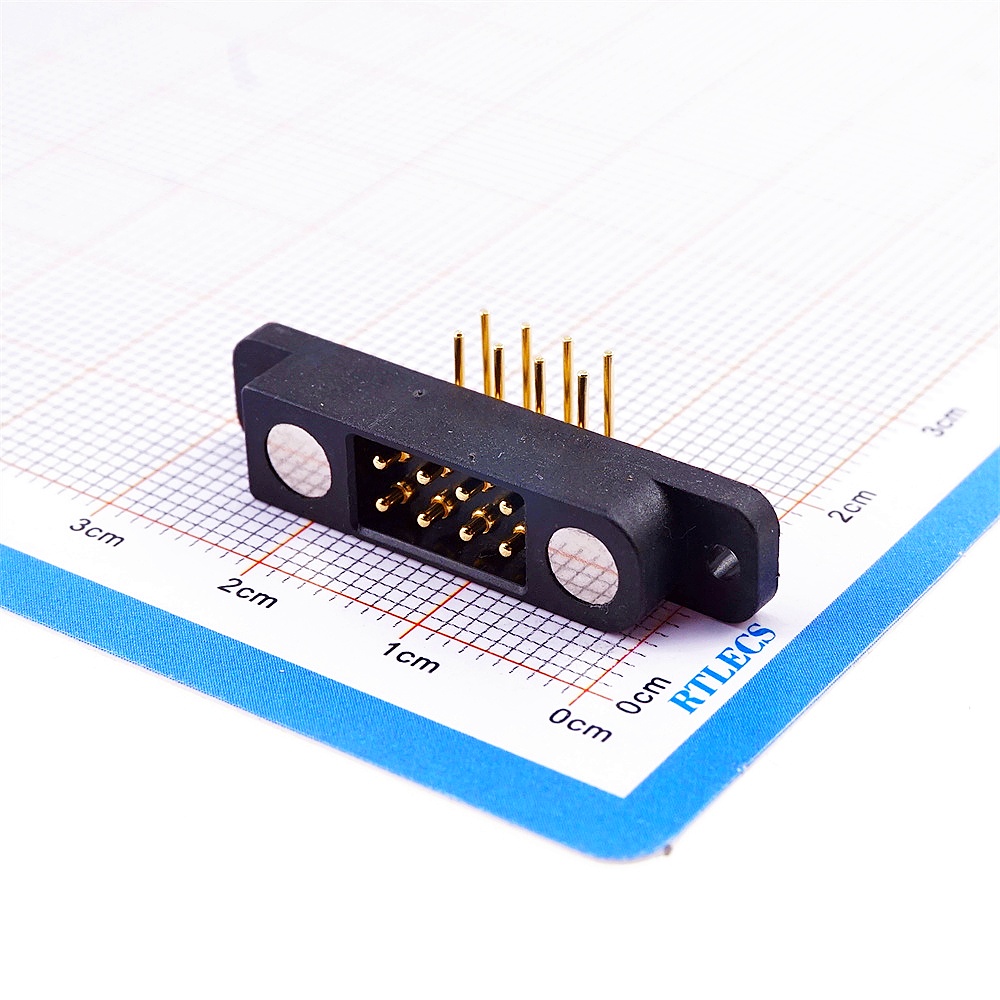

Male Right Angle MG2425M-RA

Female Right Angle MG2425F-RA

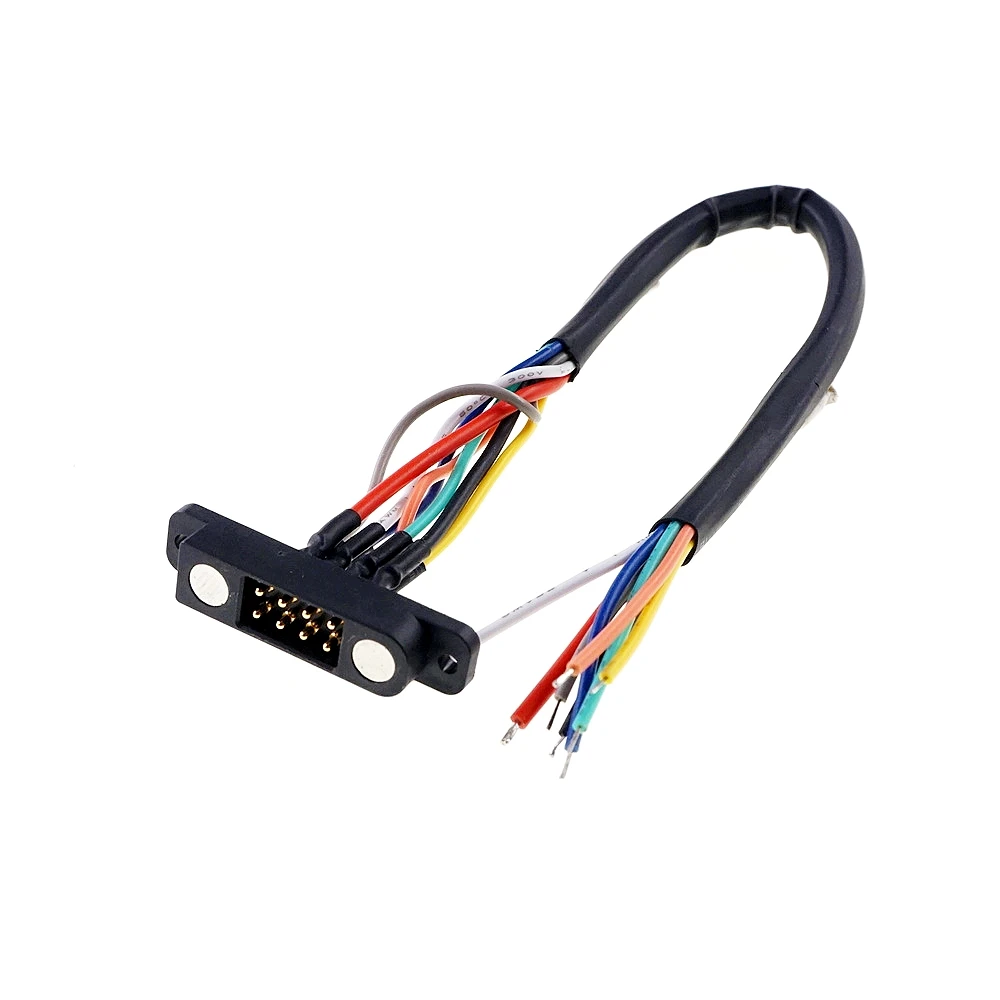

Male to Wire MG2425M-WR

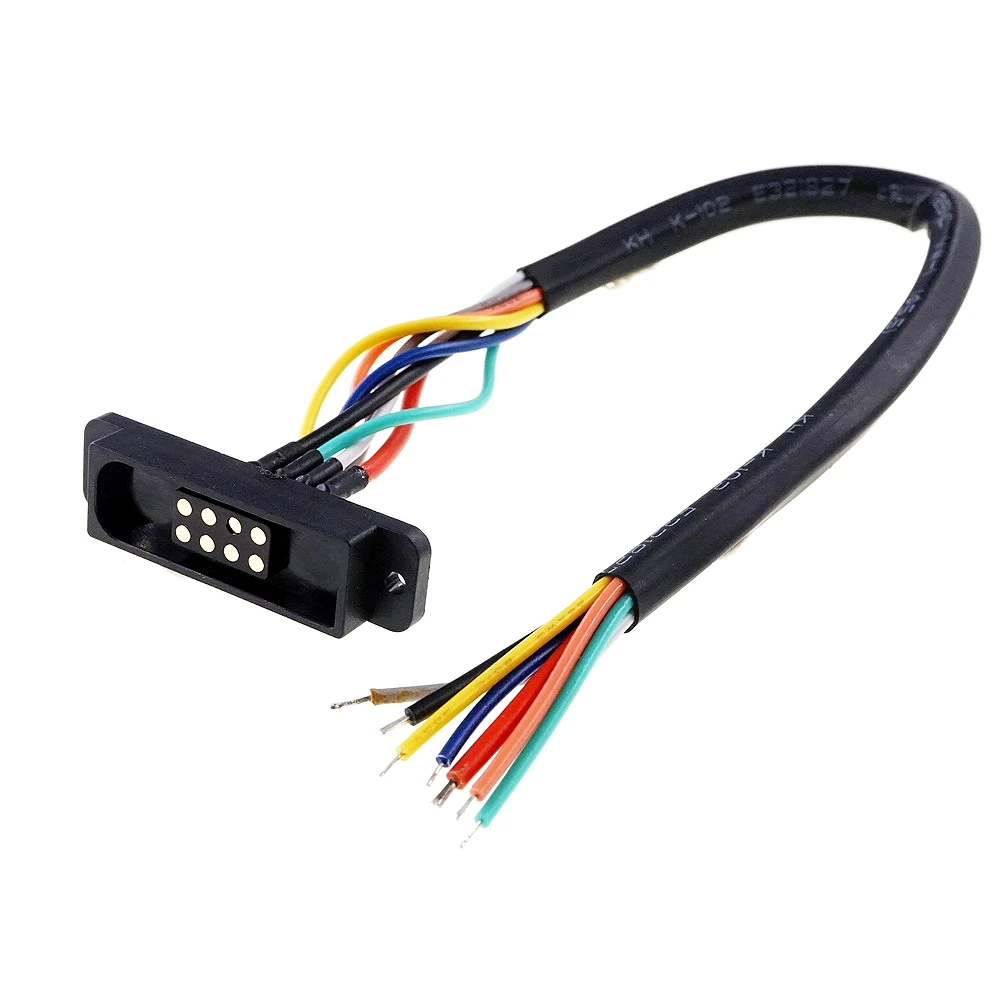

Female to Wire MG2425F-WR


8 Pin Magnetic Pogo Pin Connector Dual Row 2.54mm Pitch
8 Pin Magnetic Pogo Pin Connector Dual Row 2.54mm Pitch
8 Pin Magnetic Pogo Pin Connector Dual Row 2.54mm Pitch
8 Pin Magnetic Pogo Pin Connector Dual Row 2.54mm Pitch
8 Pin Magnetic Pogo Pin Connector Dual Row 2.54mm Pitch
8 Pin Magnetic Pogo Pin Connector Dual Row 2.54mm Pitch

Mounting Holes

2A 24V

Strong Magnetic force

Avoid wrong connection

Power supply & data transfer

Solder to PCB



Application: Medical, Machinery, Instruments, DIY etc.


Customized order welcome

Drawing available
